DVF 4000

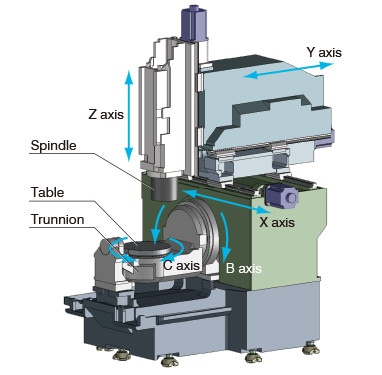

DVF 4000 is a VMC supplied by DN Solutions(Doosan Korea). The table size is Ø400 / Ø500X450 mm. The stroke is X 620 mm Y 440 mm Z 430 mm.
| Category | Item | Specification |
| Workpiece | Workpiece diameter[mm] | 500
 |
| Workpiece length[mm] | 480
| |
| Travels | Stroke X[mm] | 620
 |
| Stroke Y[mm] | 440
| |
| Stroke Z[mm] | 430
| |
| Stroke B[deg] | 140 | |
| Stroke C[deg] | 360 | |
| Rapid traverse(X)[m/min] | 36 | |
| Rapid traverse(Y)[m/min] | 36 | |
| Rapid traverse(Z)[m/min] | 36 | |
| Table | Workpiece allowable Load[kg] | 200 |
| Table Size[mm] | D400
D500×450 | |
| Category | CNC brand | Fanuc
Siemens HEIDENHAIN |
| CNC system | FANUC 31i | |
| Origin | Korea |
| Spindle name | H1-1 |
| Taper | 7:24 taper No. 40 |
| Rotational speed[rpm] | 12000 15000 |
| Power[kW] | 18.5 |
| Torque[Nm] | 117.8 |
| Transmission | Direct drive spindle |
| Tool holder taper | No. of tool storage[ea] | Tool diameter[mm] | Tool length[mm] | Tool weight[kg] | Tool change time(TTT)[s] | Tool change time(CTC)[s] |
| Axis | X | Y | Z |
| Drive | Ball screw | Ball screw | Ball screw |
| Qty | 1 | 1 | 1 |
| Product | Description |
 Coolant Through Spindle(TSC or CTS) | 20Bar 30Bar 70Bar |
 BK Mikro | Tool breakage detection(Magazine) |
 OMP60(Renishaw) | Workpiece measurement(Optics) |
 RMP60(Renishaw) | Workpiece measurement(Wireless) |
 TS27R(Renishaw) | Workpiece measurement Tool length measurement |
 LTS(Renishaw) | Tool length measurement |
 NC4(Renishaw) | Tool diameter measurement Tool length measurement |
 Oil cooler | Spindle temperature control |
 Oil chiller | Coolant temperature control |
